홈 < 유니버살조인트 < DL형

단위:mm

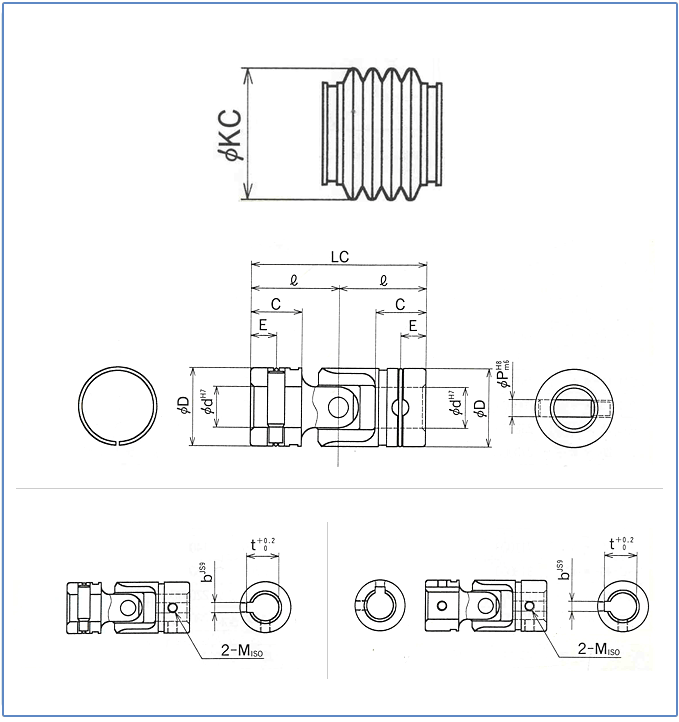

d D LC ℓ C E P d t b8 t8 M KC
SC-03-00A 3 6 26 13 9 2.5 1 - - - - - -
SC-04-00A 4 8 26 12 7 4 1.5 - - - - - -
SC-05-00A 5 10 30 15 9 5 2 - - - - - -
SC-06-※※A 6 12 31 15.5 9 4.5 3 - - - - - -
SC-08-※※A 8 15 35 18 10 5 3.5 - - - - - -
SC-10-※※A 10 19 42 21 12 6 4.5 3 11.4 4 11.5 5 35
SC-12-※※A 12 23 52 26 15 7.5 5 4 13.8 4 13.5 5 35
SC-14-※※A 14 26 59 29.5 17 8.5 5.8 5 16.3 5 16 6 40
SC-06-※※A 16 30 74 37 22 11

6.5

 5 18.3 5 18 6 46
SC-18-※※A 18 33 81 40.5 23.5 11.75 7 6 20.8 5 20 6 52
SC-20-※※A 20 36 87 43.5 25 12.5 8 6 22.8 5 22 6 58
SC-22-※※A 22 40 94 47 27 13.5 9 6 24.5 7 25 6 62
SC-25-※※A 25 44 105 52.5 30 15 10 8 28.3 7 28 8 68
SC-30-※※A 30 51 12261 35 17.5 11.5 8 33.3 7 33 8 82 17.5
SC-35-※※A 35 59 140 70 40 20 13 10 38.3 10 38.5 10 90
SC-40-※※A 40 67 157 78.5 45 22.5 14.5 12 43.3 10 43.5 10 100
SC-45-※※A 45 75 176 88 50 25 16 14 48.8 12 48.5 10 110
SC-50-※※A 50 83 191 95.5 55 27.5 17.5 14 53.5 12 53.5 10 120
