홈 < 유니버살조인트 < DL형

단위:mm

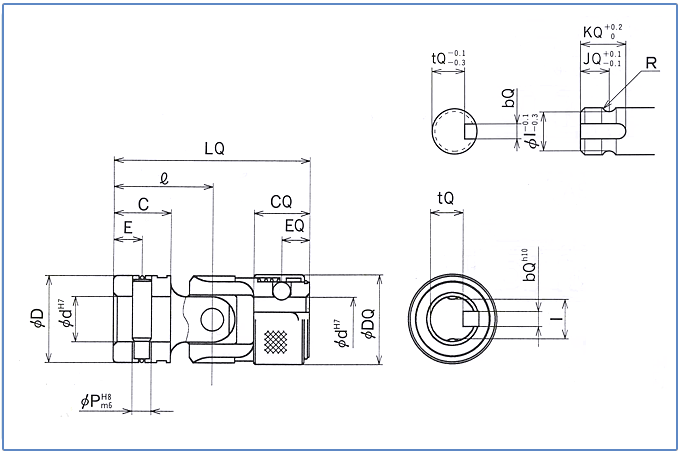

d D LQ ℓ C E P DQ CQ EQ l R JQ bQ tQ KQ
DAQ-08-09A 8 16 38 18 10 5 3.5 19 12 4 6.56 2 8 3 5.8 10
DAQ-10-09A 10 20 42 21 12 6 4.5 21.5 12 4 9.06 2 8 4 7.5 9
DAQ-12-09A 12 23 52 26 15 7.5 5 23.8 15 7.5 10.48 2.4 7.5 4 8.8 12
DAQ-14-09A 14 26 59 29.5 17 8.5 5.8 29 17 8.5 11.88 2.8 8.5 5 10.3 14
DAQ-16-09A 16 30 74 37 22 11 6.5 35 22 11 13.3 3.2 11 5 12.3 18
DAQ-18-09A 18 33 81 40.5 23.5 11.75 7 38 23.5 11.75 15.3 3.2 11.75 5 14.5 21
DAQ-20-09A 20 36 87 43.5 25 12.5 8 42 25 12.5 17.12 4 12.5 6 16.0 23
DAQ-22-09A 22 40 97 47 27 16.5 9 44 27 13.5 19.12 4 13.5 6 17.8 25
DAQ-25-09A 25 44 105 52.5 30 15 10 49 30 15 21.54 4.4 15 7 21 28
DAQ-30-09A 30 51 122 61 35 1735 11.5 56 35 17.5 26.95 4.8 17.5 7 25.3 30
