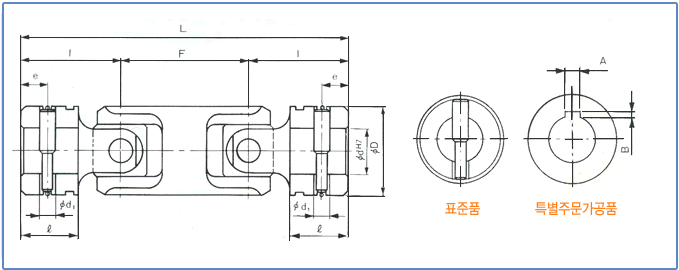

단위:mm |
|
 |
ØdH7 |
L |
ØD |
ℓ |
l |
F |
|
|
| DAW-8 |
8 |
58 |
15 |
10 |
18 |
22 |
2.7 |
0.050 |
| DAW-10 |
10 |
67.5 |
19 |
12 |
21 |
25.5 |
6.3 |
0.095 |
| DAW-12 |
12 |
83 |
23 |
15 |
26 |
31 |
11.2 |
0.180 |
| DAW-14 |
14 |
94.5 |
26 |
17 |
29.5 |
35.5 |
15.0 |
0.250 |
| DAW-16 |
16 |
117.5 |
30 |
22 |
37 |
43.5 |
24.0 |
0.410 |
| DAW-18 |
18 |
129 |
33 |
23.5 |
40.5 |
48 |
30.0 |
0.550 |
| DAW-20 |
20 |
139 |
36 |
25 |
43.5 |
52 |
40.0 |
0.690 |
| DAW-22 |
22 |
150 |
40 |
27 |
47 |
56 |
58.0 |
0.940 |
| DAW-25 |
25 |
168 |
44 |
30 |
52.5 |
63 |
77.0 |
1.240 |
| DAW-30 |
30 |
195 |
51 |
35 |
61 |
73 |
117 |
1.775 |
|
|
|
|
|
|
|
