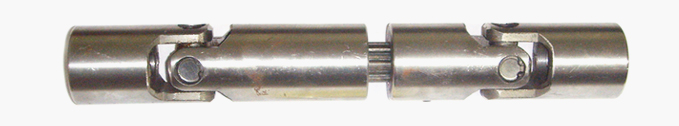

홈 < 유니버살조인트 < DR형

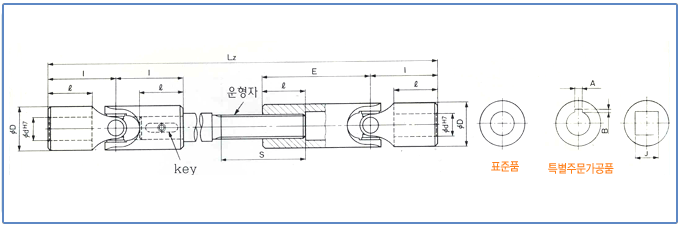

단위:mm
ØdH7 ØD L L1
L2
MINI MAX
KEY
AxB
S SPLINES ℓ
DRS-16 16 32 104 136 240 272 5x2 66 20x16x4x6ｔ 34.5
DRS-18 18 37 120 156 276 312 5x2 76 20x16x4x6ｔ 40
DRS-20 20 40 124 162 286 322 5x2 78 22x18x5x6ｔ 40
DRS-22 22 44 130 170 300 338 7x3 80 25x18x5x6ｔ 41
DRS-25 25 50 140 182 322 364 7x3 85 28x23x6x6ｔ 43
DRS-30 30 60 178 232 410 463 7x3 110 32x26x6x6ｔ 56
DRS-35 35 70 200 260 460 520 10x3.5 122 38x32x6x8ｔ 62
DRS-40 40 80 228 297 525 592 10x3.5 140 42x36x7x8ｔ 70
DRS-45 45 92 250 325 575 650 12x3.5 150 52x46x9x8ｔ 76
DRS-50 50 100 270 350 621 702 12x3.5 160 52x46x9x8ｔ 80
DRS-60 60 110 300 390 490 780 15x5 176 62x54x10x8ｔ 84
Lz는 MIN은 제작범위내의 규격입니다.
Lz는 사용조건에 맞추어서 알려주세요.
